Screen Capture
> new score = 0 > OK
> sound = snd_frontend, loop = true > OK
Sprite name |
File |
Image size |
spr_title |
title_sq.png |
500 x 500 |
spr_button_start |
button_start.png |
240 x 80 |
spr_button_load |
button_load.png |
240 x 80 |
spr_button_help |
button_help.png |
240 x 80 |
spr_button_scores |
button_scores.png |
240 x 80 |
spr_button_quit |
button_quit.png |
240 x 80 |
Background name |
File |
Image size |
bg_frontend |
background_frontend.png |
1920 x 1080 |
Sound resource |
File |
snd_frontend |
front_end.mp3 |
| Event | Screen Capture |
|---|---|
| Create object obj_title using spr_title | |

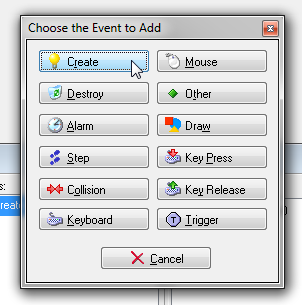

| Add Event > Create | |

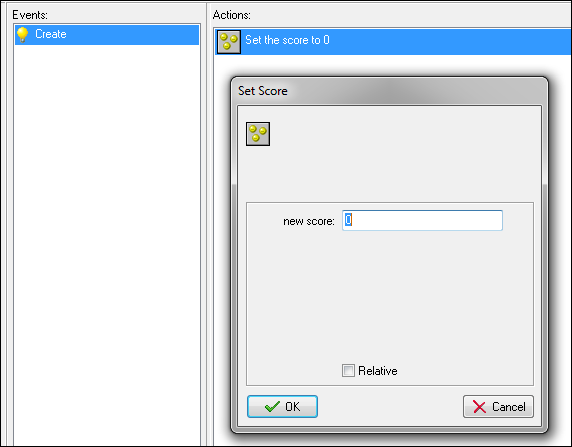

| Set Score > new score = 0 > OK |
|

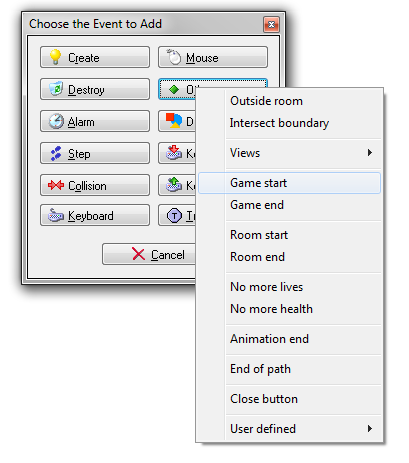

| Add Event > Other > Game Start | |

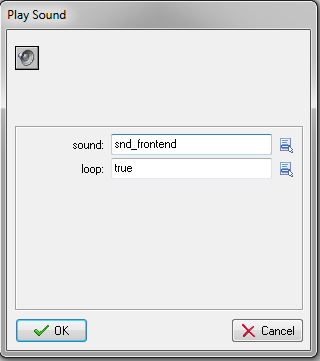

| Play Sound > sound = snd_frontend, loop = true > OK |
|

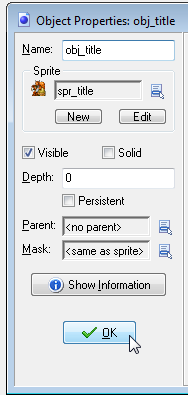

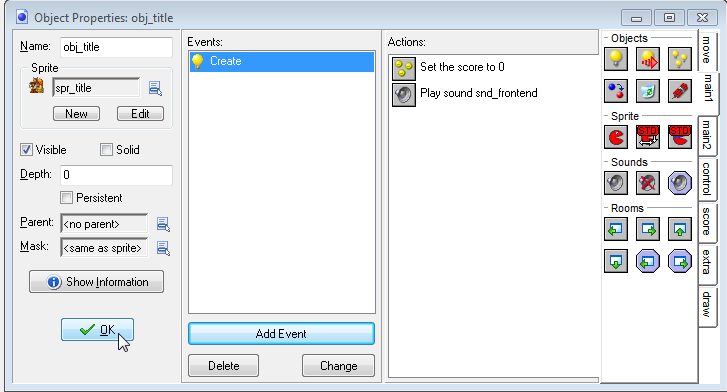

| Object Properties > OK | |
| Event | Screen Capture |
|---|---|

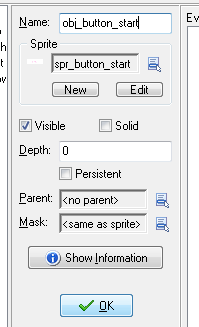

| Create object obj_button_start using spr_button_start |  |

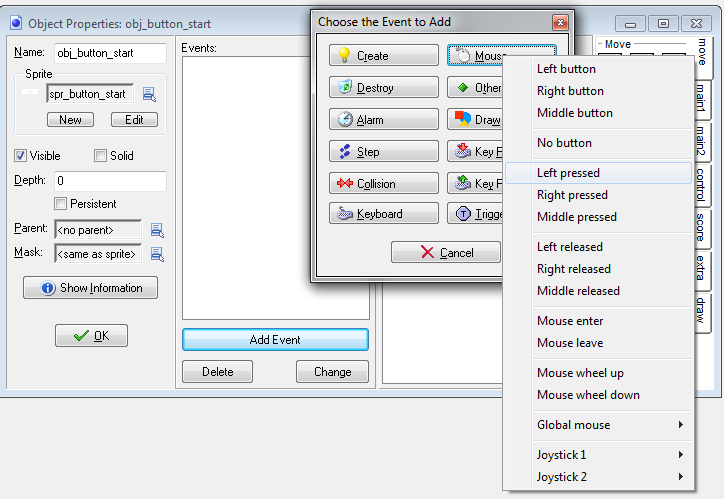

| Add Mouse > Left Pressed |  |

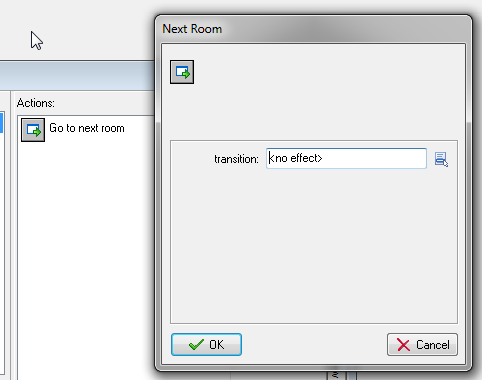

Include Next Room action  with <no effect> in transition field. Select OK > OK. |
 |
| Event | Screen Capture |
|---|---|

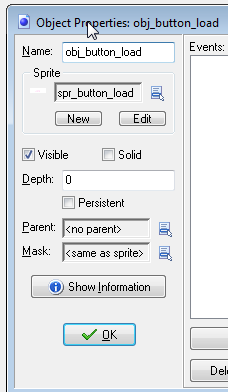

| Create obj_button_load using spr_button_load |  |

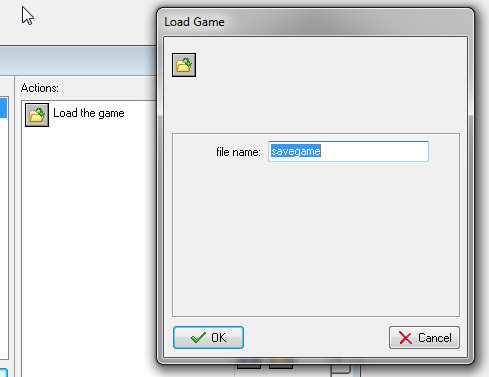

Add Mouse > Left Pressed > Load Game  |
 |
| Event | Screen Capture |
|---|---|
| Create obj_button_quit using spr_button_quit |  |

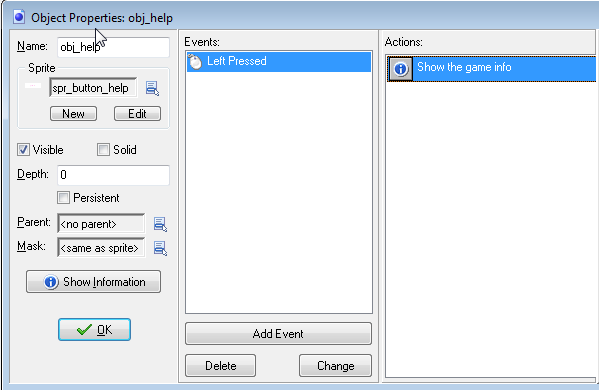

Add Mouse > Left Pressed > Show Info  |
 |
| Event | Screen Capture |
|---|---|

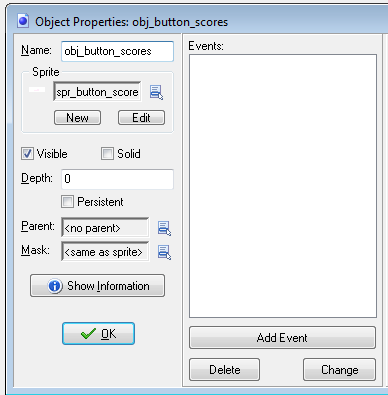

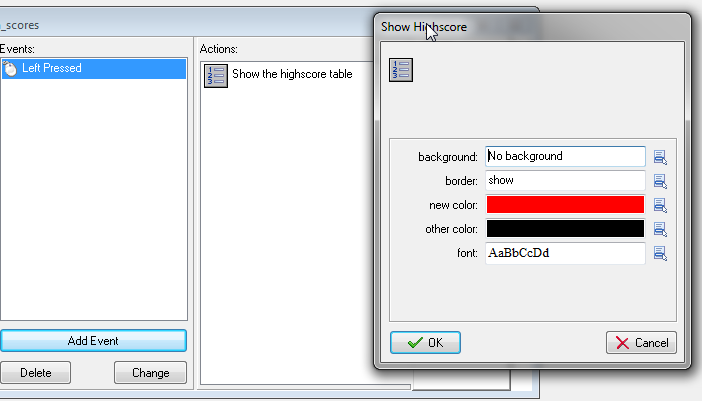

| Create obj_button_scores using spr_button_scores |  |
Add Mouse > Left Pressed > Show High Score  |
 |
| Event | Screen Capture |
|---|---|
| Create obj_button_help using spr_button_help | |
Add Mouse > Left Pressed > End Game  |
 |
The above steps gives us all the objects we need to create front end. Now create a front-end room for our objects.
| Event | Screen Capture |
|---|---|
| Create room called room_front_end |  |

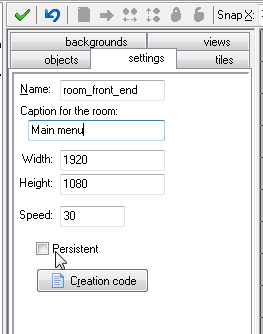

| On settings tab use set Name = room_front_end, Caption = Main menu, width = 1920, height - 1080 |  |

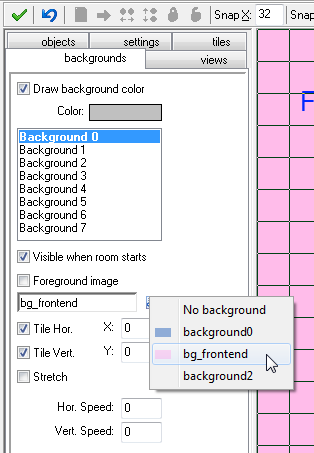

| On backgrounds tab select bg_frontend |  |
| On objects tab place one instance of each of the button objects created above. Place the obj_title. |
| Event | Screen Capture |
|---|---|

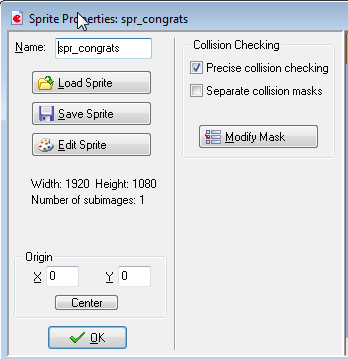

| Create sprite spr_congrats Name = congratulations.png (1920 x 1080) > OK |  |

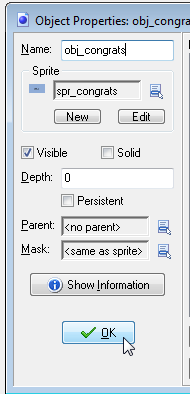

| Create object obj_contrats using spr_congrats |  |

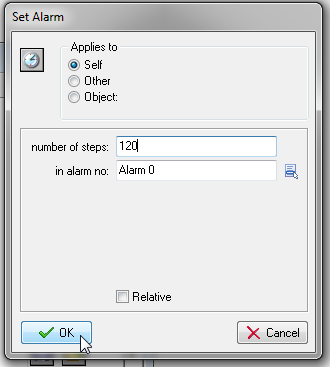

Add Event > Create > Set Alarm  |
 |

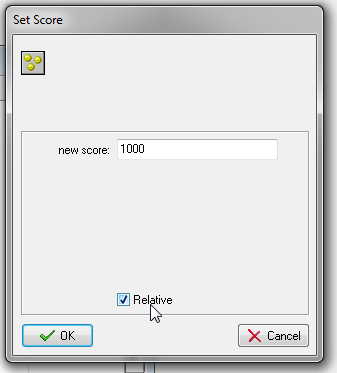

| Include Set Score |
 |

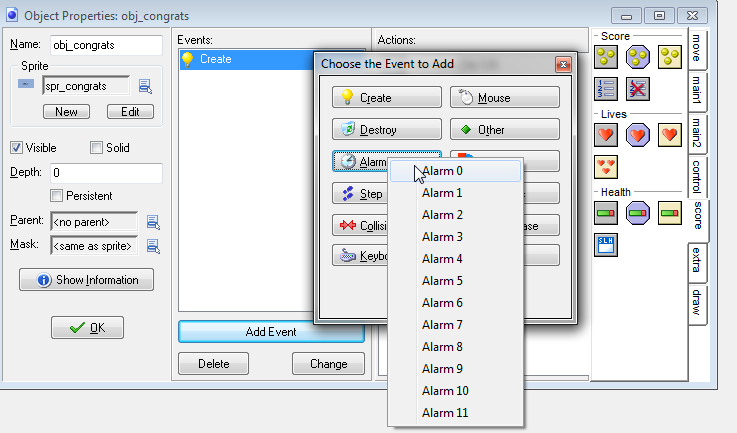

| Add Event > Alarm > Alarm0 |  |

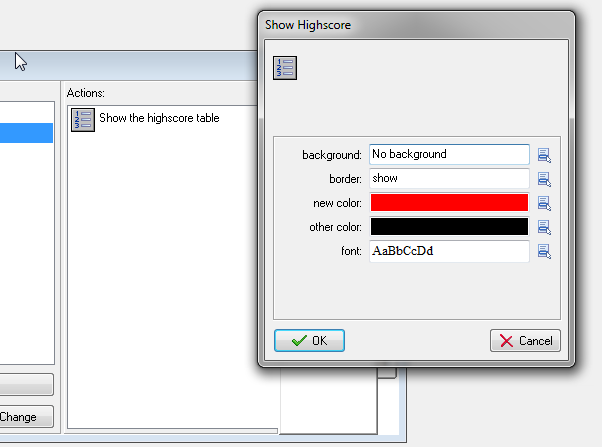

| Add Show Highscore to Alarm 0 event |
 |

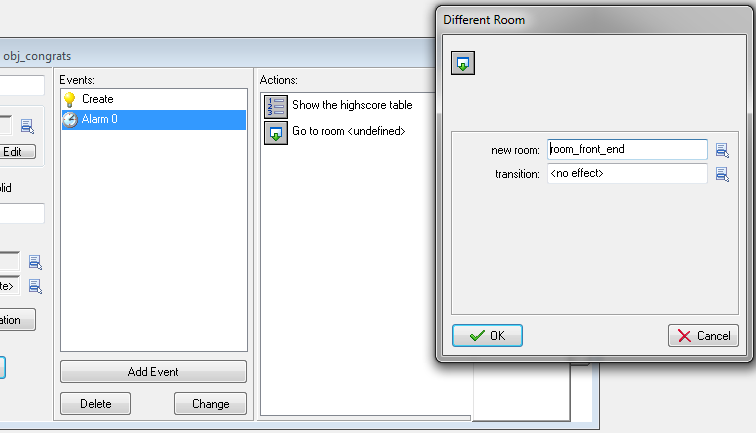

Add Different Room  to Alarm 0 event set new room = room_front_end |
 |
| Create Background |  |
| Background Properties > Name = bg_endgame > Load Background = background_endgame.png. Should show 1920 x 1080 |  |
| Create Room | |

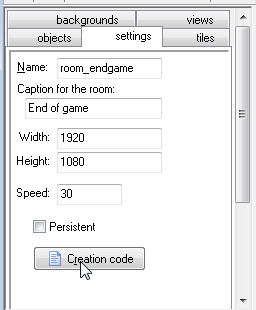

| Room Properties > Settings Tab > Name = room_endgame, Caption = End of Game, Width = 1920, Height = 1080, |  |

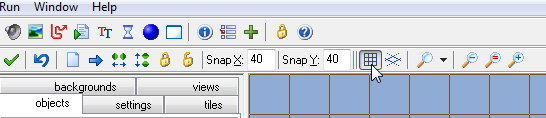

| Room Properties > Snap X = 40, Snap Y=40 |  |

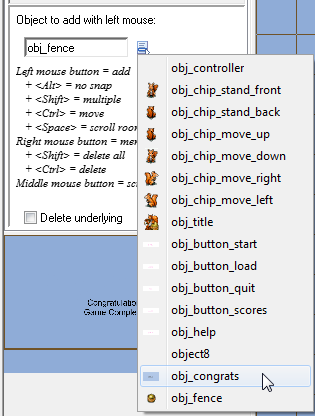

| Objects tab > Object to add with left mouse = obj_congrats |  |

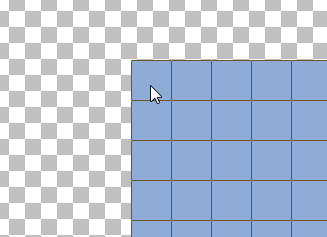

| Click left mouse one time in upper left 40 x 40 grid to place obj_congrats into room |  |
| Event | Screen Capture |
|---|---|
| Create object |  |
| Object Properties > Name = obj_controller, Sprite = no sprite |  |

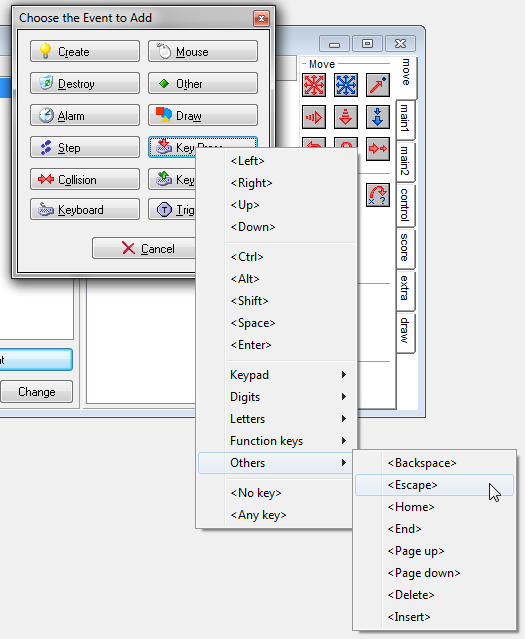

| Add Event > Key Press > Others > Escape |  |
main1 tab > Different Room  > new room = room_front_end > OK |
 |
| Event | Screen Capture |
|---|---|
| Create Background | |
Background Properties > Name = bg_level01 > Load Background > bg_level01.png Note: Width & Height should be 1920 & 1080 respectively. |
 |
| Event | Screen Capture |
|---|---|
Highlight room_endgame > Right Click > Insert Room Note: This should insert a room between room_front_end & room_endgame. If not drag new room between them now. The order of rooms does matter. |
 |
| Room Properties > Snap X = 40, Snap Y=40 | |

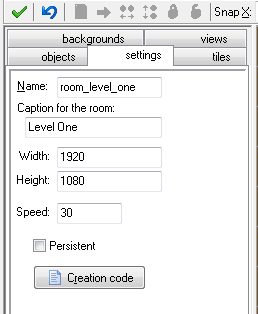

| Settings tab > Name = room_level_one, Caption for the room = Level One, Width = 1920, Height = 1080 |  |

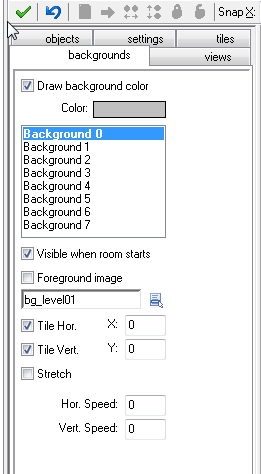

| Backgrounds tab > select bg_level01 from drop down menu |  |
| Select green check mark to close out of Room Properties |  |
| Object tab > Object to add with left mouse = obj_controller |  |
Left click once to add controller Note: Question mark means no sprite is associate to object which in this case is what we want. |
 |
| Close & save room by selecting green check mark in upper left corner. |
